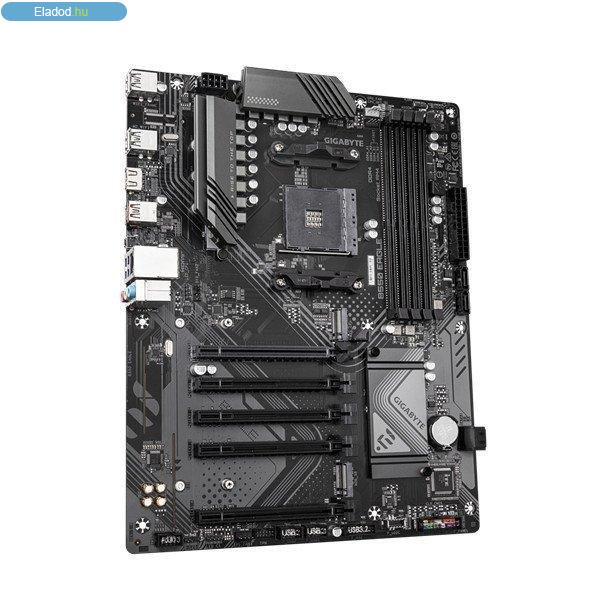

GIGABYTE Alaplap AM4 B550 EAGLE AMD B550, ATX CPU AMD Socket AM4, support
for: AMD Ryzen? 5000 G-Series Processors/ AMD Ryzen? 5000 Series Processors/
AMD Ryzen? 4000 G-Series Processors/ AMD Ryzen? 3000 G-Series Processors/ AMD
Ryzen? 3000 Series Processors (Go to GIGABYTE's website for the latest CPU
support list.) Chipset AMD B550 Memory 4 x DDR4 DIMM sockets
supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support
for DDR4 3200/2933/2667/2400/2133 MT/s memory modules Dual channel memory
architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support
for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme
Memory Profile (XMP) memory modules (The CPU and memory configuration may
affect the supported memory types, data rate (speed), and number of DRAM
modules, please refer to Memory Support List on GIGABYTE's website for more
information.) Onboard Graphics Integrated Graphics Processor with AMD
Radeon? Graphics support: - 1 x HDMI port, supporting a maximum resolution of
4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support
for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary
depending on CPU support.) Maximum shared memory of 16 GB Audio RealtekŽ
Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the
functionality of an audio jack using the audio software. To configure
7.1-channel audio, access the audio software for audio settings. LAN
RealtekŽ GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) Expansion Slots 1 x PCI
Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen? 5000/3000
Series Processors support PCIe 4.0 x16 mode - AMD Ryzen? 5000 G/4000 G/3000 G
Series Processors support PCIe 3.0x16 mode * The PCIEX16 slot can only support
a graphics card or an NVMe SSD. If only one graphics card is to be installed, be
sure to install it in the PCIEX16 slot. Chipset: - 4 x PCI Express x16
slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2, PCIEX1_3,
PCIEX1_4) Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the
CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen? 5000/3000
Series Processors support SATA and PCIe 4.0x4/x2 SSDs - AMD Ryzen? 5000 G/4000
G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2
connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type
22110/2280 PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and
RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10
support for SATA storage devices USB CPU: - AMD Ryzen? 5000/3000 Series
Processors support one USB 3.2 Gen 2 Type-A port (red) on the back panel - AMD
Ryzen? 5000 G/4000 G/3000 G-Series Processors support one USB 3.2 Gen 1 port
(red) on the back panel - 1 x USB Type-CŽ port on the back panel, with USB 3.2
Gen 1 support - 2 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB
Type-CŽ port with USB 3.2 Gen 1 support, available through the internal USB
header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4
x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 2.0
Hub: - 4 x USB 2.0/1.1 ports on the back panel Internal I/O Connectors 1
x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU
fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 2 x
addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED
strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s
connectors 1 x front panel header 1 x front panel audio header 1 x USB
Type-CŽ header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB
2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the
GC-TPM2.0_S module only) 1 x Clear CMOS jumper Back Panel Connectors 4 x
USB 2.0/1.1 ports 1 x HDMI port (Note) 1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2
Gen 1 port (red) 1 x USB Type-CŽ port, with USB 3.2 Gen 1 support 1 x Q-Flash
Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks (Note)
Actual support may vary by CPU. I/O Controller iTEŽ I/O Controller Chip
H/W Monitoring Voltage detection Temperature detection Fan speed detection
Water cooling flow rate detection Fan fail warning Fan speed control *
Whether the fan speed control function is supported will depend on the fan you
install. BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a,
DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP
Center * Available applications in APP Center may vary by motherboard model.
Supported functions of each application may also vary depending on motherboard
specifications. - @BIOS - EasyTune - RGB Fusion - Smart Backup - System
Information Viewer Support for Q-Flash Plus Support for Q-Flash Bundled
Software NortonŽ Internet Security (OEM version) LAN bandwidth management
software Operating System Support for Windows 11 64-bit Support for
Windows 10 64-bit Form Factor ATX Form Factor; 30.5cm x 24.4cm
