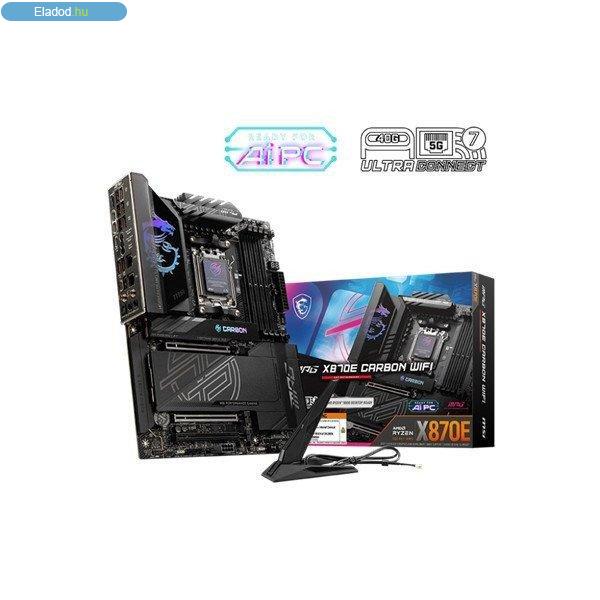

MSI Alaplap AM5 MPG X870E CARBON WIFI AMD X870, ATX Chipset AMD X870E
CPU Supports AMD Ryzen? 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5 Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/
7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/
5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s
Ryzen? 9000 Series Processors max. overclocking frequency: ? 1DPC 1R Max
speed up to 8400+ MT/s ? 1DPC 2R Max speed up to 6400+ MT/s ? 2DPC 1R Max
speed up to 6400+ MT/s ? 2DPC 2R Max speed up to 4800+ MT/s Supports
AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and
POR boot frequency may vary by CPU series, with manual overclocking available
after boot. Certain CPUs may fail to boot, but future BIOS updates will improve
compatibility. ? The DIMM slots on this motherboard have double-sided
latches. ? Memory compatibility and supported speeds can vary depending on
the CPU and memory configuration. For detailed information, please refer to the
Memory Compatibility List available on the product?s Support page or visit
https://www.msi.com/support/. Onboard Graphics 1x HDMI? Support
HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C
DisplayPort USB4Ž port, supporting DisplayPort 1.4 with HBR3 over USB Type-C,
maximum resolution of 4K@60Hz* *Available only on processors featuring
integrated graphics. Graphics specifications may vary depending on the CPU
installed. Slot 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up
to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU) PCI_E3
Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots
? Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen? 9000/ 7000 Series processors)
? Supports PCIe 4.0 x8/x0 (For Ryzen? 8700/ 8600/ 8400 Series processors)
? Supports PCIe 4.0 x4/x0 (For Ryzen? 8500/ 8300 Series processor) PCI_E3
slot ? Supports up to PCIe 4.0 x4 * PCI_E1 & PCI_E2 & M.2_2
share the bandwidth, and PCIe version support varies depending on the CPU.
Please refer to the PCIe configuration table in the manual for more details.
Audio RealtekŽ ALC4080 Codec 7.1-Channel USB High-Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF
output Storage 4x M.2 M.2_1 Source (From CPU) supports up to PCIe
5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to
PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports
up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset)
supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G *
PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support
varies depending on the CPU. Please refer to the PCIe configuration table in the
manual for more details. RAID ?Supports RAID 0, RAID 1 and Raid 10
for SATA storage devices ?Supports RAID 0, RAID 1 and Raid 10* for M.2 NVMe
storage devices * RAID 10 for M.2 NVMe storage devices is only supported
by AMD Ryzen? 9000/7000 series CPU. USB 4x USB 2.0 (Front) 4x USB
5Gbps Type A (Front) 9x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C
(Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN 1x RealtekŽ 8126 5G LAN 1x RealtekŽ 8125 2.5G LAN Internal
IO 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power
Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x
System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis
Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN)
3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB)
4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
