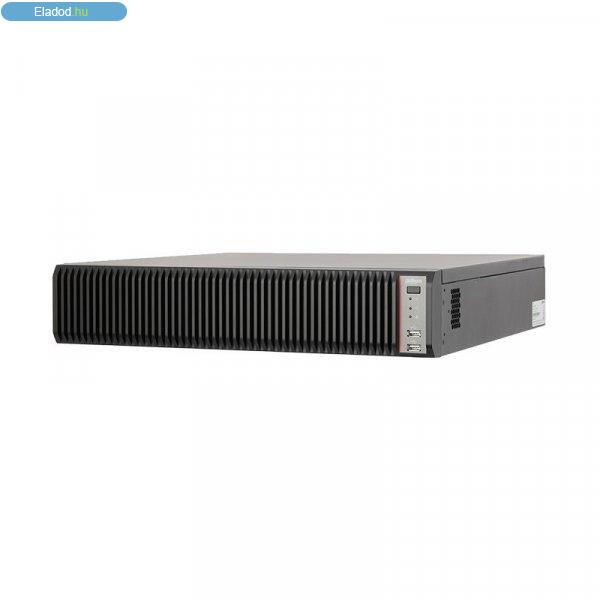

Dahua IVSS7008-1I 2U 8HDD AI Network Video Recorder (Hálózati rögzítő egység,
NVR) ˇ Industry embedded micro-controller ˇ Max 400Mbps incoming bandwidth ˇ
128-channel IP video access ˇ Up to 16-channel perimeter protection ˇ Up to
6-channel face recognition by device ˇ Up to 20-channel face recognition by
camera ˇ Up to 4-channel Video Metadata ˇ Up to 50 face databases with 300,000
face pictures in total ˇ Supports RAID 0/1/5/6/10 ˇ SAS3.0 for storage extension
ˇ 3HDMI/2VGA video output Dahua IVSS7008-1I 2U 8HDD AI Network Video Recorder
(Hálózati rögzítő egység, NVR Technical Specification System Main Processor
Industry embedded micro-controller Operating System Embedded Linux OS Operation
Interface WEB (PCAPP), local GUI AI Applications AI by Camera Supports AI by
camera function: Human face detection, human face recognition, video metadata
(human/vehicle/non-motorized vehicle), perimeter protection AI by Device
Supports AI by IVSS function: Human face detection, human face recognition,
video metadata (human/vehicle/non-motorized vehicle), perimeter protection,
plate recognition Perimeter Protection Perimeter Function (AI by device)
16-channel Perimeter Function (AI by camera) 64-channel Human Face Detection
Human Face Properties Supports 6 properties: Gender, age range (6 levels),
glasses, expression (11 types), mouth mask, and beard Face Detection Performance
(AI by device) (1080P) (Channel Amount) 6-channel, one channel max. supports 12
human faces Face Detection Performance (AI by camera) (Channel Amount)
20-channel Human Face Recognition Face Database Capacity Max. 50 human face
databases, 300000 pictures, each database contains 300000 pictures Human Face
Recognition Performance (AI by device) (1080P)(Channel Amount) 6-channel, 20
face pictures per second processing Human Face Recognition Performance (AI by
camera) (Channel Amount) 20-channel Plate Recognition Plate Database Capacity
Max. 50 plate databases, each database contains 300000 plate numbers Support
black list/white list Plate Detection Performance by ITC Camera (Channel Amount)
32-channel Video Metadata Human Body Properties Top color, top type, bottom
color, bottom type, cap, bag, age, gender, and umbrella Vehicle Properties
Supports 9 properties: Plate, plate color, vehicle body, vehicle brand, driver
calling, seatbelt status, decoration object in the vehicle, and vehicle
registration place Non-motorized Vehicle Properties Supports 4 properties:
Vehicle type, vehicle color, people amount, and helmet Metadata Performance (AI
by device) (1080P) (Channel Amount) 4-channel Metadata Performance (AI by
camera) (Channel Amount) 32-channel Video Parameters Remote Connection
128-channel Network Bandwidth Incoming bandwidth: 400Mbps recording bandwidth:
320Mbps outgoing bandwidth: 96Mbps Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3
MP/1080P/960P/720P/D1/CIF/QCIF Decoding Capability 20-channel 1080P@ 30fps Video
Output 2-channel VGA output, 3-channel HDMI output, VGA 1/ HDMI 1 outputs the
same video source. VGA2/HDMI2 outputs the same video source. Supports 4K output
Multi-screen Display Customized display Max. 36-channel local live view
Max.16-channel PCAPP live view Third-party Support Onvif, RTSP, Sony, Panasonic,
Axis, Arecont, Pelco,Canon, Samsung Operating System Embedded Linux OS Operation
Interface WEB(PCAPP), local GUI Compression Video Compression Smart H.265+/Smart
H.264+/H.265/H.264 Audio Compression G.711A/G.711U/PCM/G726 Network Protocol
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P Mobile
Phone iOS, Android Interoperability ONVIF (profile S), CGI, SDK Browser Chrome,
PCAPP, IE9 or higher, Firefox Network Mode NIC binding mode such as
multiple-address mode, load balance, fault-tolerance, etc Record Playback
Multiple-channel Playback Max. 16-channel playback Record Mode Search video
detection/manual record/IO alarm/ intelligent event/all record file Storage Mode
Internal HDD, SAS disk array enclosure Backup Mode HDD, peripheral USB storage
device Playback Play, pause, stop, fast forward, fast backward, reverse play,
frame by frame play Full-screen, backup (clip/file), snapshot, digital zoom,
audio on/off Storage HDD Group 8 RAID RAID 0/1/5/6/10 Storage Pool N/A Alarm
General Alarm Motion detect, tampering, local alarm Anomaly Alarm IPC offline
alarm, storage error, HDD full, IP conflict, MAC conflict, login lock, AI module
temperature alarm, AI module offline, fan malfunction
